Description

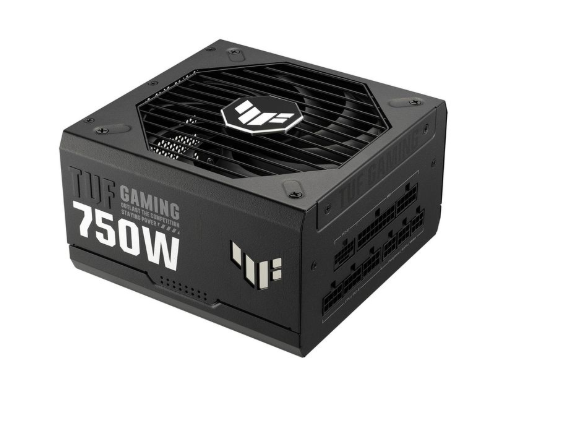

Asus The TUF Gaming 750W PSU
The ASUS TUF Gaming 750W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.
Design
Cooling type
Active
Fan diameter
13.5 cm
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Black
Packaging content
Cable tie(s) included
Yes
Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data
Package type
Box
Performance
80 PLUS certification
80 PLUS Gold
ATX version
3.1
Power supply unit (PSU) form factor
ATX
Purpose
PC
Ports & interfaces
ATX power connector (20+4 pin)
Yes
Cabling type
Fully-Modular
CPU power cable length
65 cm
CPU power connector (4+4 pin)
Yes
Motherboard power cable length
61 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
5
PCI Express power connectors (16-pin)
1
PCI Express power connectors (8-pin)
3
Peripheral (Molex) power cable length
150, 400
Peripheral (Molex) power connectors (4-pin)
4
SATA power cable length
120, 400
Power
AC input voltage
100 – 240 V
Combined power (-12V)
9.6 W
Combined power (+12V)
744 W
Combined power (+3.3V)
130 W
Combined power (+5V)
130 W
Combined power (+5Vsb)
15 W
Efficiency
92 %
Max output current (-12V)
0.8 A
Max output current (+12V)
62 A
Max output current (+3.3V)
25 A
Max output current (+5V)
25 A
Max output current (+5Vsb)
3 A
Power protection features
Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Total power
750 W
Technical details
Compliance certificates
RoHS
Sustainability certificates
RoHS
Sustainability compliance
Yes
