Description

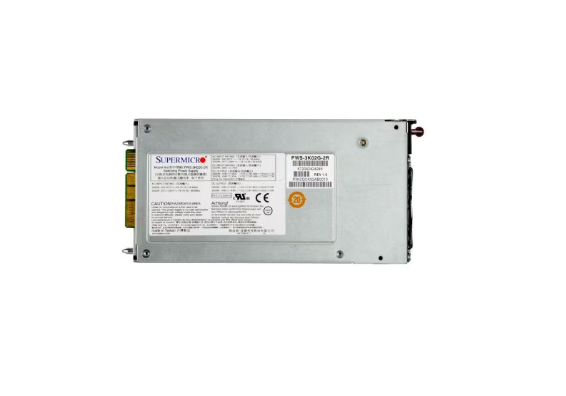

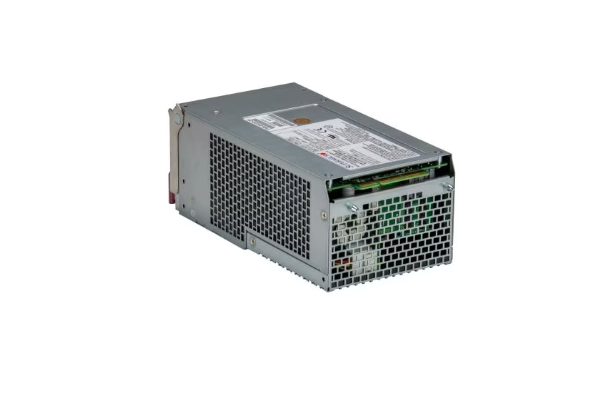

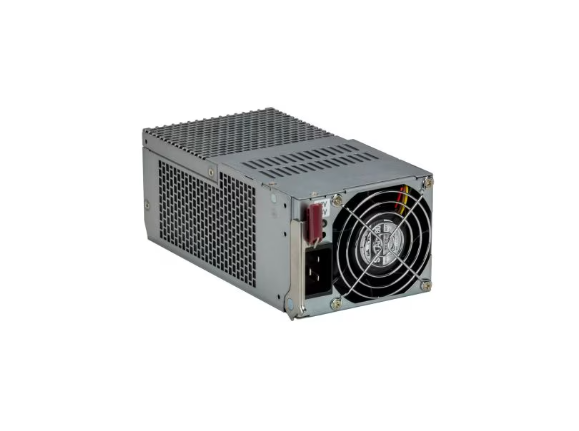

Supermicro PWS-3K02G-2R 3000W 2U 54V/12V 80PLUS Output Redundant Power Supply
Part Number PWS-3K02G-2R
Total Power Output 3000W
Type Redundant
Type of Power Supply Power Supply
Form Factor 2U
Dimension (W x H x L) 106.5 x 82.4 x 203.5 mm
+5V N/A
+12V 91.66A
+3.3V N/A
5V Standby N/A
+12V Standby 4A
Input Voltage Range 200-207Vac: 2880W / 207.1-240Vac: 3000W / 240Vdc: 3000W (for CQC only)
Input Frequency Range 50-60Hz
Input Current Range 200-207Vac: 16-15.7A / 207.1-240Vac: 16-14.5A / 240Vdc: 15A (for CQC only)
Output Type Gold Finger
8Pin / 4Pin (12V) Connector N/A
Inlet Connector IEC 60320 C20
PFC N/A
Energy Efficiency 96%+ Efficiency
80 Plus Certification 80 Plus Titanium
