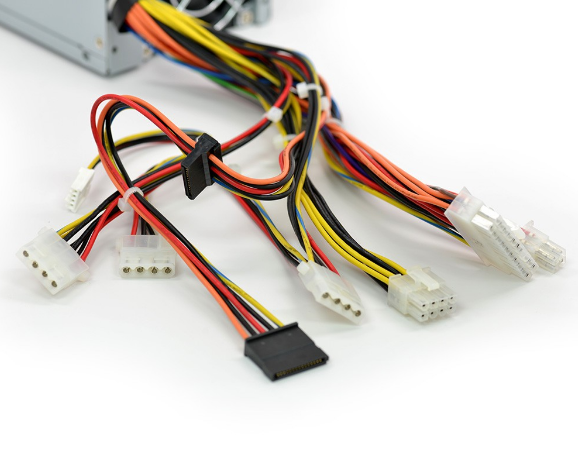

FSP500-702UH 500W FSP GROUP 2U Server Power Supply Unit
| SPECIFICATIONS |
| MODEL NAME |
FSP500-702UH |
| WATTAGE |
500W |
| DIMENSION |
240mm (L) × 100 mm (W) × 70mm (H) |
| PRODUCT HIGHLIGHT |
Efficiency Level |
80 Plus Bronze |
|
Altitude |
5000M |
| GENERAL SPECIFICATION |
Effciency |
85% 230VAC |
|
Voltage Regulation |
+3.3V, +12V, +5V, +5SB: ±5%
-12V: ±10% |
| INPUT ELECTRICAL SPECIFICATION |
Input Frequency |
47 ~ 63 Hz |
|
Input Current |
115V@ 8.0 Amps-rms maximum
230V@ 4.0 Amps-rms maximum |
| OUTPUT SPECIFICATION |
Hold-up time |
115V/60Hz 16mSec. Minimum@100% Load,
230V/50Hz 16mSec. Minimum@100% Load |
|
Ouput Voltage Regulation |
+3.3Vdc output : +3.5 Vdc minimum, + 4.5Vdc maximum
+5Vdc output : +5.5 Vdc minimum, + 6.82Vdc maximum
+12Vdc output : +13.4 Vdc minimum, + 15.6Vdc maximum |
|
Ripple & Noise |
115V-rms/230V-rms 5V 20ms Maximum
115V-rms/230V-rms 12V 20ms Maximum |
|
Over current protection |
3.3V:50mV p-p
5V:50mV p-p
12V1:120mV p-p
12V2:120mV p-p
12V3:120mV p-p
-12V:120mV p-p
5Vsb:50mV p-p
-5V:100mV p-p |
| ENVIRONMENTAL REQUIREMENT |
Temperature Range |
Operating : 0 to +50℃
Storage :-20 to +80℃ |
|
Humidity |
Operating : 85% to % RH, Non-condensing
Storage : 95% to % RH, Non-condensing |
|
MBTF |
The power supply have a minimum predicted MTBF(MIL-HDBK-217) of 100,000 hours of continuous operation at 25℃, 75% output load, and nominal AC inout voltage |
| SAFETY |
CE,FCC,TUV,UL/cUL |
Output Voltage and Current Rating
|
+3.3V |
+5V |
+12V1 |
+12V2 |
+12V3 |
-12V |
+5VSB |
| RIPPLE-NOISE(R-P) MV |
50mV |
50mV |
120mV |
120mV |
120mV |
120mV |
50mV |
| REGULATION LOAD % |
±5% |
±5% |
±5% |
±5% |
±5% |
±10% |
±5% |
| OUTPUT MAX.(A) |
20A |
20A |
16A |
16A |
16A |
0.5A |
3A |
| OUTPUT MIN.(A) |
0.5A |
1A |
0.5A |
1A |
1A |
0A |
0A |
Notes
- 5V, 3.3V, 12V, -12V Will have the regulation to 10% when all load take off.
- The 12V1 and 12V2 and 12V3 total output shall not exceed 39A.
- The +3.3V and +5V total output shall not exceed 130 watts.
- The total output shall not exceed 500 watts
|
| FEATURES |
• 80 Plus Bronze
• Low Ripple & Noise
• Output over voltage protection
• Short circuit protection on all outputs
• Resettable power shut down
• INTERNAL 4 cm fan
• 100% burn-in under high ambient temperature(50℃)
• Vacuum-impregnated transformer
• MTBF:100K hours at 25℃
• 100% Hi-pot tested
• Line input fuse protection |
