Description

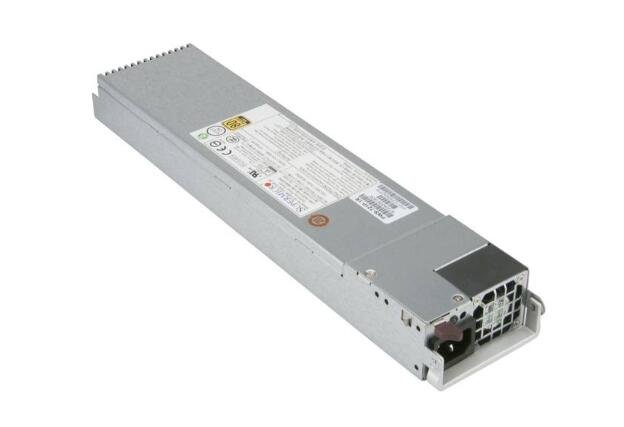

SUPERMICRO 720W 1U REDUNDANT POWER SUPPLY PWS-721P-1R
Total Power Output 720W
Type Module
Type of Power Supply Power Supply
Form Factor 1U
Dimension (W x H x L) 76 x 40 x 346 mm
+5V N/A
+12V 59A
+3.3V N/A
5V Standby 4A
Input Voltage Range 100-240V
Input Frequency Range 50-60Hz
Input Current Range 9-4A
Output Type Gold Finger (19 Pair Connector)
8Pin / 4Pin (12V) Connector N/A
PFC Yes
Voltage / Current Yes
Energy Efficiency 90% Peak
80 Plus Certification 80 Plus Gold
Validated Chassis CSE-213A-R720LPB, CSE-213LTQ-R720LPB, CSE-213LTQ-R720UB, CSE-815TQ-720CB, CSE-815TQ-720UB
Type Module
Type of Power Supply Power Supply
Form Factor 1U
Dimension (W x H x L) 76 x 40 x 346 mm
+5V N/A
+12V 59A
+3.3V N/A
5V Standby 4A
Input Voltage Range 100-240V
Input Frequency Range 50-60Hz
Input Current Range 9-4A
Output Type Gold Finger (19 Pair Connector)
8Pin / 4Pin (12V) Connector N/A
PFC Yes
Voltage / Current Yes
Energy Efficiency 90% Peak
80 Plus Certification 80 Plus Gold
Validated Chassis CSE-213A-R720LPB, CSE-213LTQ-R720LPB, CSE-213LTQ-R720UB, CSE-815TQ-720CB, CSE-815TQ-720UB
